Bashguard with integrated chain-tensioner
Bashguard with integrated chain-tensioner
Coming Soon
Normaler Preis
CHF 150.00
Normaler Preis
Verkaufspreis
CHF 150.00
Grundpreis
/
pro

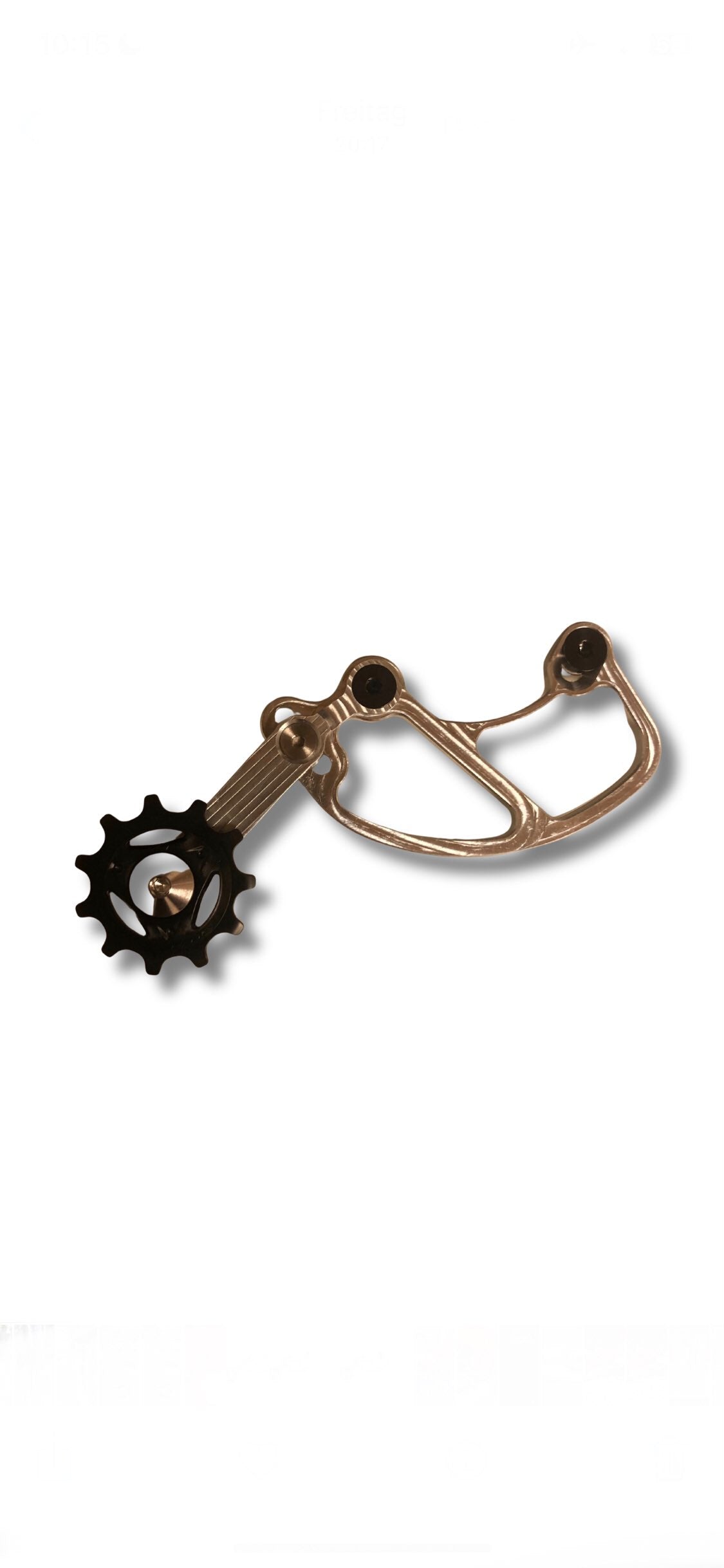

Take your Enduro to the next level with this chain tensioner. It will be quieter on rough sections and put less strain on the rear derailleur.
Scope of delivery:

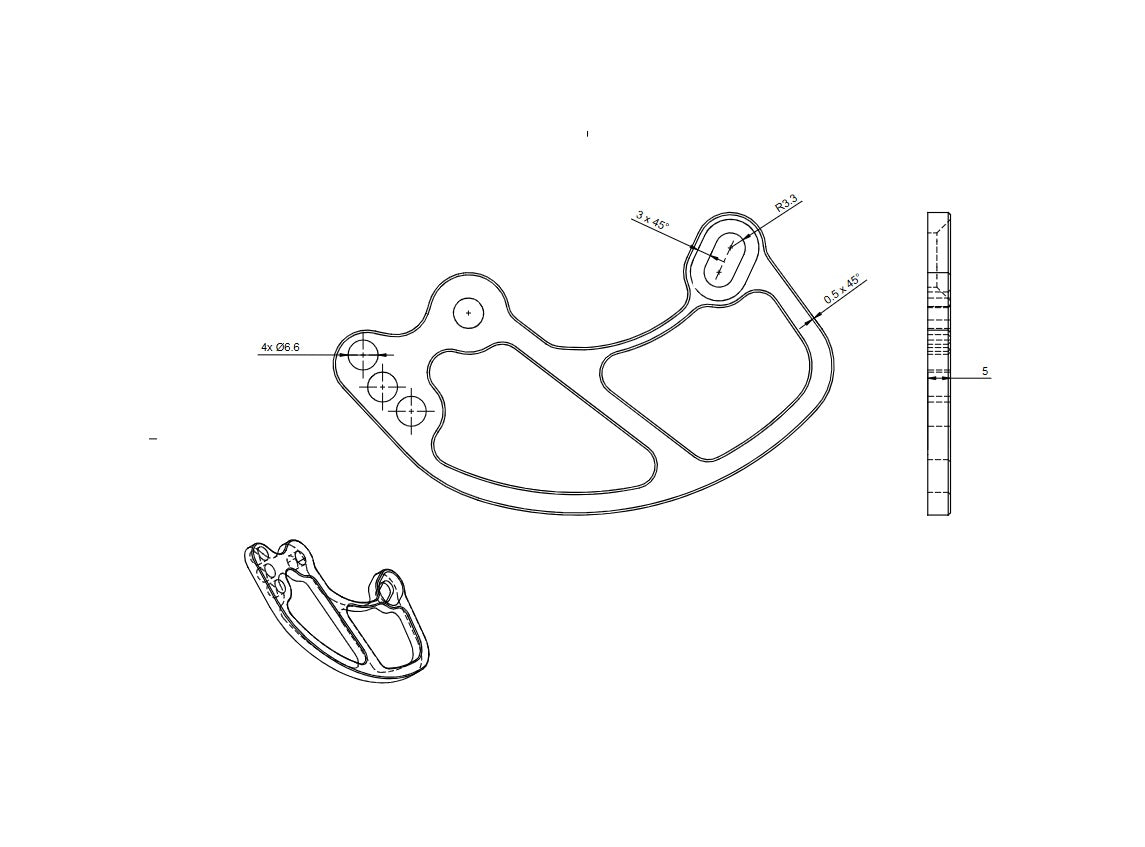

1x CNC bash guard made of EW7075 alloy black anodized / g

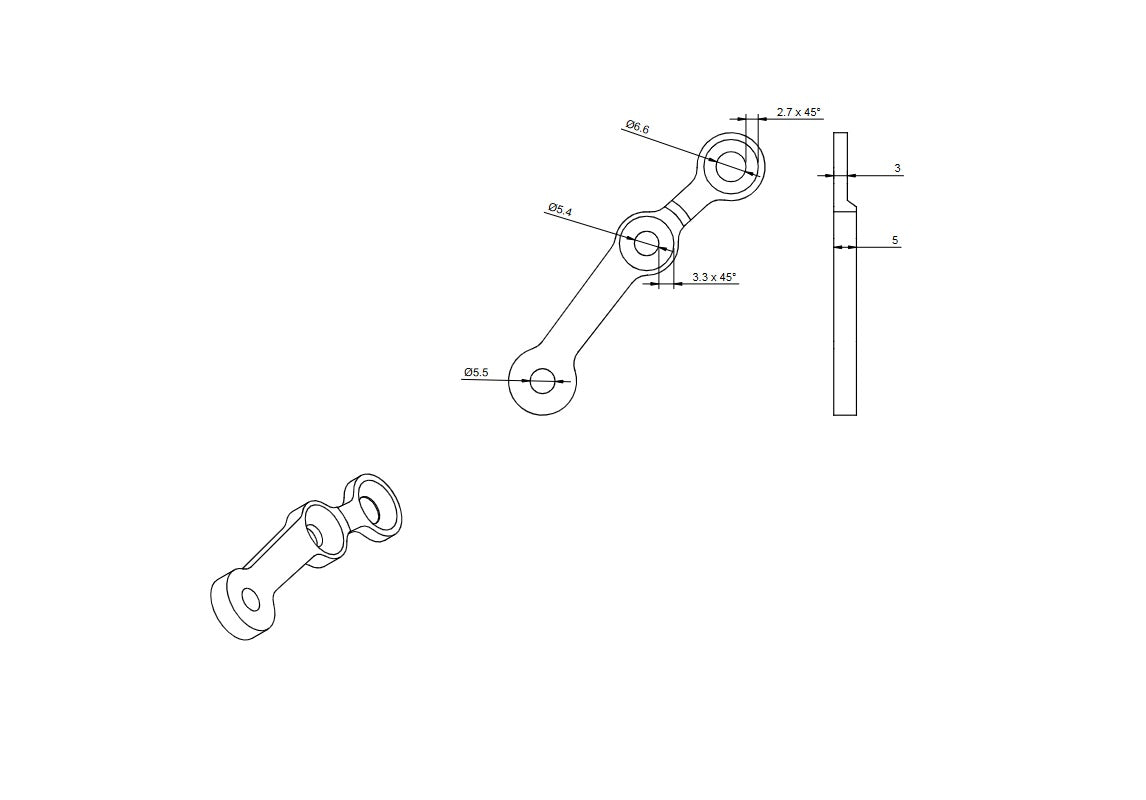

1x CNC chain tension arm made of EW7075 alloy black anodized / g
2x laser cut 55mm washers made of EW7075 alloy black anodized / g
1x pro-bolt M6x15mm titanium countersunk bolt (TICS615) / Allen key size: 4mm / 4Nm / 1.91g
1x pro-bolt M6x20mm titanium countersunk bolt (TICS620) / Allen key size: 4mm / 4Nm / 2.4g
Scope of delivery:
1x CNC bash guard made of EW7075 alloy black anodized / g
1x CNC chain tension arm made of EW7075 alloy black anodized / g
2x laser cut 55mm washers made of EW7075 alloy black anodized / g
1x pro-bolt M6x15mm titanium countersunk bolt (TICS615) / Allen key size: 4mm / 4Nm / 1.91g
1x pro-bolt M6x20mm titanium countersunk bolt (TICS620) / Allen key size: 4mm / 4Nm / 2.4g
1x pro-bolt M5x15mm titanium countersunk bolt (TICS515) / Allen key size: 3mm / 3Nm / 1.28g
1x pro-bolt M5x25mm Stainless dome head bolt (LSSFB525XL) / Allen key size: 4mm / 3Nm / 3.02g
2x pro-bolt M5 titanium nut (TIFN5) / Socket size: 8mm / 3Nm / 0.62g
6x pro-bolt M6x12mm alloy washers (LWA6)/ 0.32g
4x pro-bolt M5x15mm titanium washers (TIWA5-15) / 0.54g
2x pro-bolt M5 titanium nut (TIFN5) / Socket size: 8mm / 3Nm / 0.62g
6x pro-bolt M6x12mm alloy washers (LWA6)/ 0.32g
4x pro-bolt M5x15mm titanium washers (TIWA5-15) / 0.54g
2x pro-bolt M6 (DIN1587) purple
Total weight: 55-60g
Compatibility:
All MTB frames with 1by, ISCG05 mounts, and ≤32t chainring.
Important:
Due to the many different non-cross-compatible chain options, we decided to not include the pulley wheel. We recommend using the same ≤14T pulleys from your derailleur. Here are the most common ones listed:
Sram Transmission 11.7518.104.007
Shimano 12-speed: Y3FW98010
Sram AXS 11.7518.103.000
Sram DH 1x11 11.7518.032.000
Sram DH 1x7 11.7518.070.000
According to our testing experience the chain must be lengthened by 4-9 links depending on pulley wheel size and setting of the tensioner.
Total weight: 55-60g
Compatibility:
All MTB frames with 1by, ISCG05 mounts, and ≤32t chainring.
Important:
Due to the many different non-cross-compatible chain options, we decided to not include the pulley wheel. We recommend using the same ≤14T pulleys from your derailleur. Here are the most common ones listed:
Sram Transmission 11.7518.104.007
Shimano 12-speed: Y3FW98010
Sram AXS 11.7518.103.000
Sram DH 1x11 11.7518.032.000
Sram DH 1x7 11.7518.070.000
According to our testing experience the chain must be lengthened by 4-9 links depending on pulley wheel size and setting of the tensioner.
Made in Zürich, Switzerland
